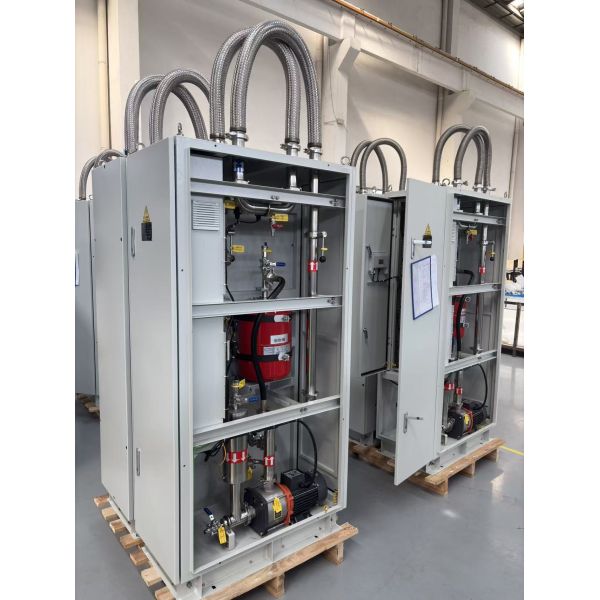

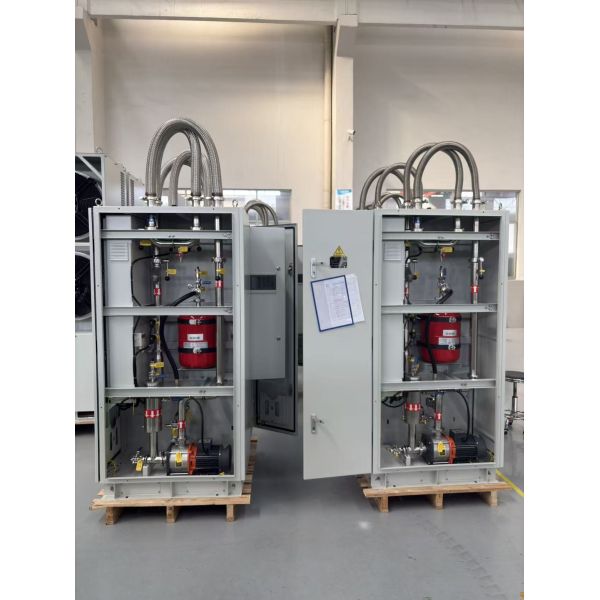

85KW Cooling Capacity Closed Loop Water Based Cooling System With Stainless Steel Construction

Name: 85KW Cooling Capacity Closed Loop Water Based Cooling System With Stainless Steel Construction
Brand: YUDA
Price: 1 USD

Brand Name : YUDA

Model Number : LSF-85kw

Certification : CE ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 30days

Packaging Details : Wooden Case

Temperature Control Accuracy : Plus or minus 1 degree Celsius

Heat dissipation power range : 10-200kW

Cooling Method : Closed Loop Water Cooling System

Antifreeze concentration : 0-55%

Rated Flow Rate : 30 to 120 L per minute

Design pressure : 0.8MPa

Temperature difference (inlet vs ambient) : ≥5℃

Optional Material : Stainless Steel

Control Method : Intelligent Temperature Control

Power Supply : AC 380V 50 Hz or Customized

Contact Now

85KW Marine Industry Water Cooling System for New Energy Wind and Solar Power Generation

The 85KW Marine Industry Water Cooling System is a high-performance cooling solution engineered for demanding marine and coastal environments. As renewable energy projects expand into offshore and nearshore locations, reliable thermal management becomes essential for stable operation. This system meets rigorous marine industry standards while supporting modern wind and solar power generation equipment.

Utilizing a closed-loop water cooling structure, the system delivers consistent heat dissipation for power electronics operating under continuous load. The robust design ensures long-term reliability, making it an ideal cooling solution for renewable energy systems used within the marine industry worldwide.

Key Features

Modular design with exhaust and drain valves for easy maintenance

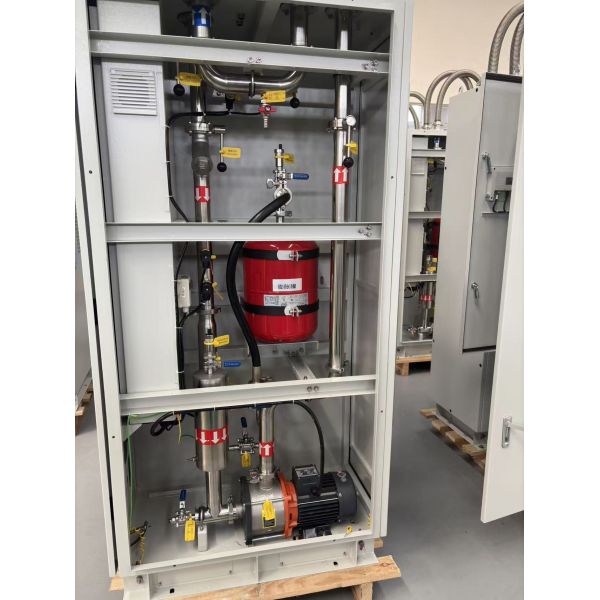

Comprehensive system includes main circulating pump, electric three-way valve, filter, heater, expansion tank, and air cooler
Advanced temperature and pressure monitoring with independent operation capability
Remote control support via terminal and serial port communication
Constructed with stainless steel, aluminum alloy, and EPDM materials for corrosion resistance
Designed for harsh environments including cold, wind/sand, and salt fog conditions
Special corrosion protection solutions for offshore and marine platform applications

Technical Specifications

Rated Cooling Capacity	85 kW continuous output
Nominal Water Flow Rate	145 L per minute ±5%
Maximum Working Pressure	1.0 MPa
Power Consumption	Less than 4.8 kW
Temperature Control Accuracy	±1°C
Inlet Water Temperature Range	15 to 35°C
Design Service Life	More than 10 years

Operating Conditions

Storage Environment Relative Humidity	≤95%
Operating Environment Temperature	-40℃ to 40℃
Operating Environment Relative Humidity	≤95%
Altitude	≤3000m
Power Supply	AC380V ±10%, 50 ±1Hz

Applications

Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.
